7 Models in Category

Blenders and Mixers

Engineered blenders and mixers manufactured for demanding pharmaceutical, chemical, and industrial fluid handling applications.

Explore ModelsRequest Technical Quote
Standard MOCsSS304, SS316, SS316L
Design StandardscGMP / ASME
OriginPune, India
Blenders and Mixers

Blenders and Mixers

Invento Process Solutions

Equipment Lineup

Blenders and Mixers Range

Explore each model's operational specifications, design highlights, and industrial capabilities.

Ribbon Blender
Blenders & Mixers

Ribbon Blender

Ribbon Blender (also named ribbon mixer) is a basic industrial mixing machine. Consists of a trough-shaped shell (usually 2 to 3 times longer than it is wide) fitted with a horizontal longitudinal shaft on which are mounted arms supporting a combination of ribbon blades, paddles or helical screws. The most effective design of ribbon layout is the double spiral. Customized ribbon blenders available as per customer requirements.

Technical Specifications

MOC
SS, SS304, SS316/L, MS
Capacity
10 to 2,000 Litres
Max Speed
Up to 40 RPM

Key Features & Capabilities

  • Double spiral ribbon layout
  • Horizontal trough-shaped shell
  • Customized versions available
  • 10 to 2,000 Litres capacity
Enquire About Ribbon BlenderAll Process Equipments

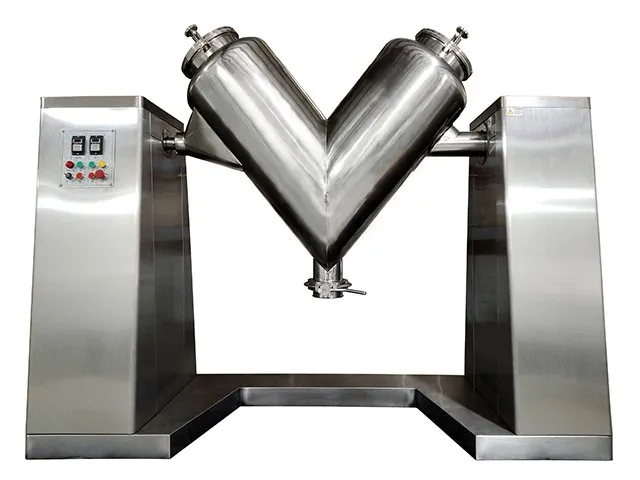

V Shape / Twin Shell Blender
Blenders & Mixers

V Shape / Twin Shell Blender

The V-type blender is used to produce homogeneous solid-solid mixture. Diffusion blending is characterized by small scale random motion of solid particles. The V-Blender is made of two hollow cylindrical shells joined at an angle of 75° to 90°. The series consists of 10 models. Customized and automated mixer with liquid spray and self-cleaning filter with control panel available.

Technical Specifications

MOC (product contact)
AISI 316 (EN 14404)
MOC (structure)
AISI 304 (EN 14301)
Capacity Range
50 to 4,200 Litres
Mixing Time
3 to 15 minutes
Models Available
10

Key Features & Capabilities

  • Solid-solid homogeneous mixing
  • Two shells at 75° to 90° angle
  • 50 to 4,200 Litres range
  • 3 to 15 minute mixing times
Enquire About V Shape / Twin Shell BlenderAll Process Equipments

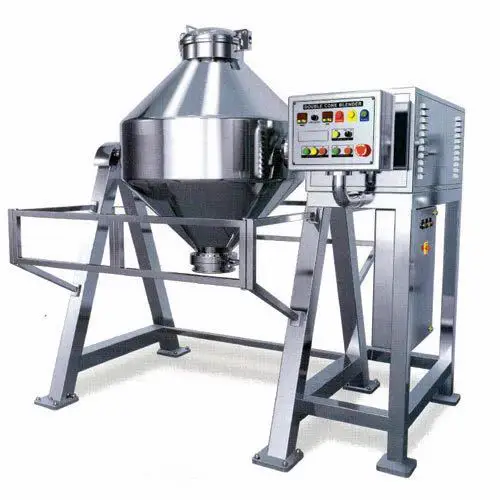

Double Cone Blender
Blenders & Mixers

Double Cone Blender

Double Cone Blender (double cone mixer) suitable for the mixing of different types of powders. Central baffle is provided inside the vessel and on the wall of cylindrical shell. The machine works on motor with reduction gearbox and the vessel mounted on Plummer block and specially designed chain sprocket. Safety guard is provided with limit switch interlocked with motor for safe operations.

Technical Specifications

MOC
SS304, SS316
Capacity
10 to 1,500 Litres

Key Features & Capabilities

  • Powder mixing specialist
  • Zero retention design
  • CGMP model available
  • 10 to 1,500 Litres
Enquire About Double Cone BlenderAll Process Equipments

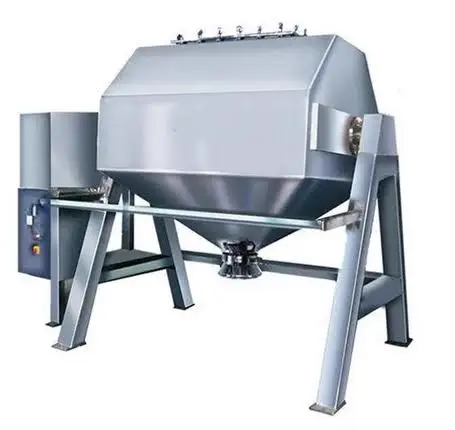

Octagonal Blender
Blenders & Mixers

Octagonal Blender

Invento cGMP model Octagonal Blender is designed to process large volume of material i.e. 80% of blending volume. It is ideal for lubrication of granules and homogenization of multiple batches in single batch.

Technical Specifications

Capacity
20 to 5,000 Litres
Contact Parts
SS316
Support Structure
SS304

Key Features & Capabilities

  • 80% blending volume utilization
  • Granule lubrication and homogenization
  • Multiple batches in single run
  • MIMIC panel + variable speed controller
Enquire About Octagonal BlenderAll Process Equipments

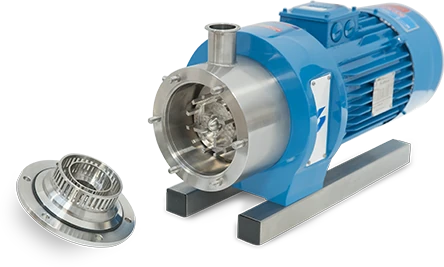

Inline Homogenizer
Blenders & Mixers

Inline Homogenizer

Continuous inline homogenization for consistent product quality in flow-through processes.

Key Features & Capabilities

  • Continuous inline processing
  • Consistent homogenization
  • Flow-through design
Enquire About Inline HomogenizerAll Process Equipments

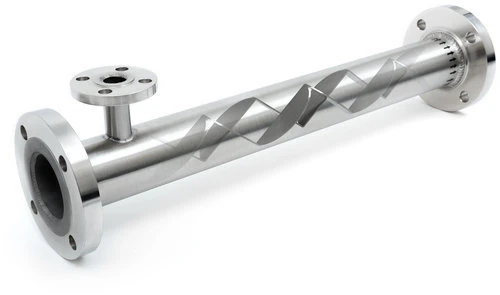

Static Mixer
Blenders & Mixers

Static Mixer

No moving parts, maintenance-free static mixing for continuous blending of fluids.

Key Features & Capabilities

  • No moving parts
  • Zero maintenance
  • Continuous fluid blending
Enquire About Static MixerAll Process Equipments

Custom Engineering

Need Custom Capacity or Specifications?

Our in-house design and fabrication team in Chikhali, Pune constructs process vessels, thermal systems, and agitation equipment to exact client data sheets. We provide full documentation, material test certificates (MTC), and hydraulic testing for every unit.

+91 7798902383
sales@inventoprocess.com

Submit your process parameters, capacity requirements, and fluid properties:

Discuss Custom Requirements
