Reactors and Pressure Vessels

Engineered reactors and pressure vessels manufactured for demanding pharmaceutical, chemical, and industrial fluid handling applications.

Explore ModelsRequest Technical Quote
Standard MOCsSS304, SS316, SS316L
Design StandardscGMP / ASME
OriginPune, India
Reactors and Pressure Vessels

Reactors and Pressure Vessels

Invento Process Solutions

Equipment Lineup

Reactors and Pressure Vessels Range

Explore each model's operational specifications, design highlights, and industrial capabilities.

Jacketed Reactor
Reactors

Jacketed Reactor

Jacketed reactor used for the mixing/blending operation or chemical reactions which consists of a cylindrical vessel with agitator and external jacket for heating or cooling as per process requirements. Invento is a leading manufacturer of jacketed reactor with standard MOCs and capacity from 100 to 50000 Ltrs as per client requirements. Advanced reaction process control system available to optimize reactor performance and batch cycle with quality control.

Technical Specifications

Reactor MOCs
SS, SS304, SS316/L with MS/SS jacket
Capacity Range
100 to 50,000 Litres
Design Temperature
-25°C to 250°C
Design Pressure
-1 to 12 bar

Key Features & Capabilities

  • Mixing/blending and chemical reactions
  • External jacket for heating or cooling
  • Advanced process control system available
  • Custom capacity 100 to 50,000 Ltrs
Enquire About Jacketed ReactorAll Process Equipments

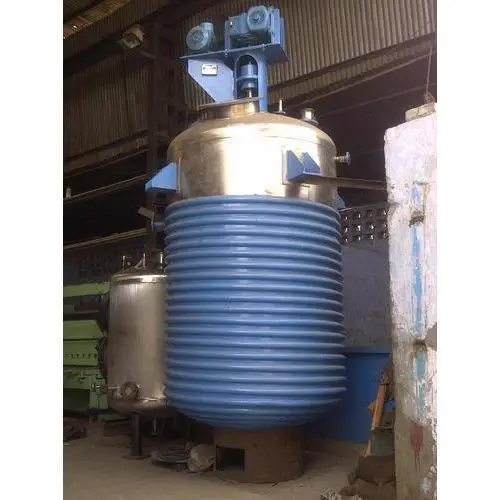

Limpet Coil Reaction Vessel
Reactors

Limpet Coil Reaction Vessel

Limpet coil reactor used for high capacity reactors with more heat effectiveness. Single/double limpet system reactors available depending on reactor operation chronology. Advanced process control system for reaction optimization and safety. Invento also has expertise in providing internal heating/cooling coil system for pharma and specialty chemical plants.

Technical Specifications

Reactor MOCs
SS, SS304, SS316/L, titanium, Hast-alloy with MS/SS Limpet
Capacity Range
1,000 to 50,000 Litres
Design Temperature
-25°C to 250°C
Design Pressure
-1 to 12 bar

Key Features & Capabilities

  • Single or double limpet system
  • High heat effectiveness
  • Internal heating/cooling coil option
  • Reaction optimization and safety controls
Enquire About Limpet Coil Reaction VesselAll Process Equipments

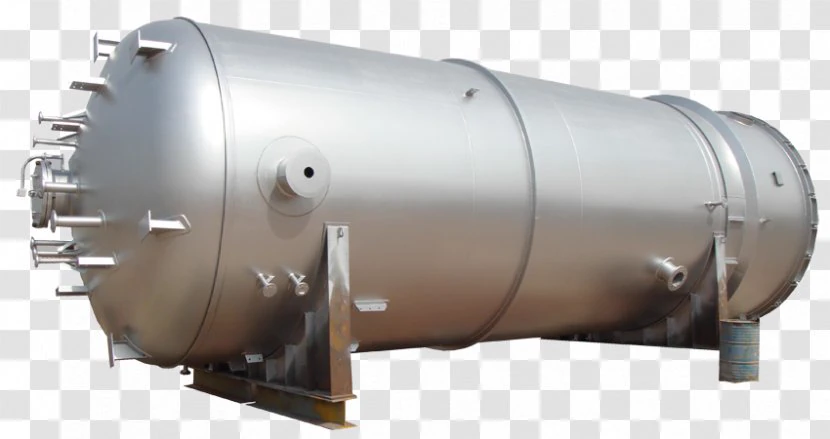

Pressure Vessel
Reactors

Pressure Vessel

Pressure vessels for internal containment designed to store liquid, gas, or vapor at pressures greater than 1.035 bar. Wide application range in all chemical industries. Designed and fabricated under strict regulations with quality control measures.

Technical Specifications

MOC
SS304, SS316/L
Design Pressure
1 kg/cm²g to 250 kg/cm²g

Key Features & Capabilities

  • Liquid, gas, or vapor containment
  • Pressures > 1.035 bar
  • Strict regulation compliance
  • Quality control at every stage
Enquire About Pressure VesselAll Process Equipments
Autoclave
Reactors

Autoclave

50 ml to 100 liters volume reactors. Widely used for highly hydrothermal reactions. Available in a range of exotic materials for corrosive or high-temperature environments.

Technical Specifications

Volume Range
50 ml to 100 Litres
Max Pressure
400 bar
Max Temperature
500°C
MOC Options
SS-316, SS-316L, Hast-alloy B/C, Monel, Nickel, Inconel, Titanium, Tantalum lined, Zirconium

Key Features & Capabilities

  • Hydrothermal reactions
  • Exotic MOC options available
  • PLC/microprocessor automation
  • Up to 400 bar / 500°C
Enquire About AutoclaveAll Process Equipments

Custom Engineering

Need Custom Capacity or Specifications?

Our in-house design and fabrication team in Chikhali, Pune constructs process vessels, thermal systems, and agitation equipment to exact client data sheets. We provide full documentation, material test certificates (MTC), and hydraulic testing for every unit.

+91 7798902383
sales@inventoprocess.com

Submit your process parameters, capacity requirements, and fluid properties:

Discuss Custom Requirements
